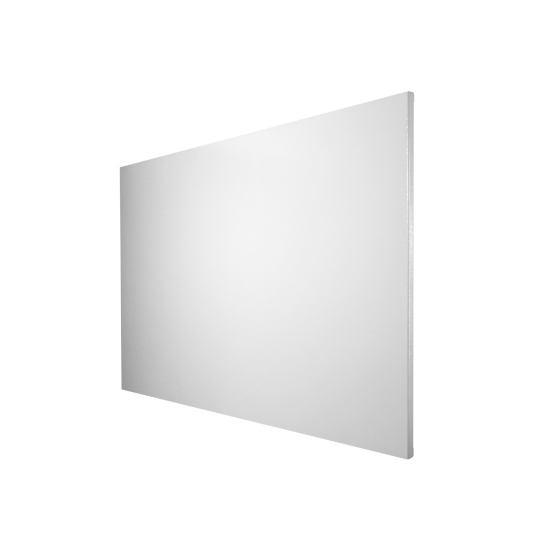

Technotherm ISP Frameless Infrared Heating Panel - White 950w (1500 x 600mm)
Whether you need to heat your living room, office, or workplace, look no further than the 950w Technotherm ISP Frameless infrared panel. Providing gentle radiant heat, Technotherm ISP Frameless panels offer a 21st century heating system that’s both unobtrusive and elegant: a perfect choice for a range of interior spaces.
These panels must be used with a TPF-Eco Radio Frequency Thermostat in order to operate.
- Premium Heating Solution
- Precision German Engineering
- High-Quality, Compact Steel Body
- Even Heat Distribution with Matrix Heat Mat
- Programmable with TPF-Eco Thermostat
- WiFi Control with TPF-Eco & Eco Interface
- Horizontal & Vertical Fitting
- No On-Going Maintenance
- Heat Retentive Rock Wool Insulation
- DIY Installation with Easy-Fit Brackets
- Wall & Ceiling Mounted
More Information Brand Technotherm Product Weight (kg) 16 Depth (mm) 15 Height (mm) 600 Width (mm) 1500 Wattage (w) 950 Cable Length (m) 1 IP Rating IP44 Suitable for Bathrooms Zone 2 and 3 IEC Class Protection Class II Room Size - Modern Insulation (m²) 19 Room Size - Poor Insulation (m²) 15.5 Outdoor Heat Area - Max (m²) N/A Outdoor Heat Area - Min (m²) N/A
Manuals & Installation
Download the Technotherm Frameless Infrared Panel Manual
Download the Technotherm Eco Interface Manual
Download the TPF-Eco and Eco Interface User Guide
Download the Connecting your Panels Guide
Technotherm infrared heating panels can be installed DIY with ease, without the need for costly professional callouts. The panels can be either wall or ceiling mounted both horizontally and vertically to suit your needs – simply plugging into the nearest available wall socket.
These products come with an IP44 rating, which renders them safe for use in bathroom zones 2 and 3. Any electric appliances intended for bathroom use must be hardwired to the wall by a professional electrician: this is not a DIY job. Always defer to the manufacturer’s guidelines regarding the bathroom suitability of any product.
Technotherm infrared panels come with in-built RF receivers that allow wireless control using the TPF-Eco Radio Frequency Thermostat, which can control a maximum of 9 panels. Technotherm infrared panels must be purchased with the TPF-Eco thermostat in order to operate. Without the thermostat, the panels will not heat. To access your heating on the move, you can purchase your panels with the Eco Interface, which works in conjunction with the TPF-Eco for on-demand temperature management from anywhere in the world using a smartphone or tablet.
Technotherm ISP Frameless Infrared Heating Panels come with a 5 Year Warranty on the heater body and a 2 Year Warranty on the thermostat and receiver.
FREE 3-4 Week UK Delivery
This item is available with free delivery. Please allow 3 weeks for the item to arrive.
Orders of multiple items may be shipped on a pallet. If you are ordering multiple different items, we will always endeavour to dispatch your goods together. However, separate dispatches may be necessary if the items you have ordered are being shipped from different locations. Check our delivery page or speak to our customer service team for more information.
Please be aware that delivery times and charges may be increased if you want the items delivered to addresses in the Scottish Highlands & Islands, or outside the UK mainland. This will be calculated when you enter your postcode at the checkout.
What You Will Need
Redefine interior space heating with Technotherm ISP Frameless infrared panels, offering a discreet, low-key heat source with an emphasis on efficiency and elegance. Manufactured to exceptional standards, the Technotherm ISP frameless range boasts a slimline housing that adds a modern touch to any room. This 950w, 600mm version of the ISP Frameless infrared heating panel is one of the largest in the range and comes finished in white for a chic aesthetic. This infrared panel can also be wall or ceiling mounted depending on your needs.
German-made, with rock wool insulation to prevent heat loss from the rear, Technotherm ISP infrared panels use carbon wiring stitched into a Matrix Heat Mat to uniformly heat the front surface of the panel, which then radiates heat out into the room to warm your spaces. This heat conductive mat manages to house up to ten-times more wire than conventional methods, helping to provide an even distribution of heat, without hot or cold spots.
Technotherm are so passionate about the construction of their infrared panels that each stage of production is closely monitored, tested, and approved by one of their dedicated quality control managers. This approach ensures every product meets and maintains Technotherm’s impeccable standard and every one of their products comes with a unique code that can be traced back to the manufacturing plant - helping them to identify who built and signed off each panel at each stage of development.
Discreet, efficient, and suitable for easy DIY installation, Technotherm infrared panels come with integrated RF receivers that communicate with the TPF-Eco Radio Frequency Thermostat for full heating control. This means, unlike competing infrared products, Technotherm infrared panels are ready for use from the second you open the box, without the need for professional callouts or additional wiring. Simply mount them on the wall, plug them into the nearest socket, and you’re good to go.
Controlling your Technotherm Panels
Technotherm Infrared Panels work in tandem with the TPF-Eco Radio Frequency Thermostat. Using the thermostat, you can create a detailed 24/7 heating schedule that caters to your every whim, helping you save energy by specifying exactly when, and to what extent, your rooms are heated. Using multiple thermostats, you can also zone your heating and assign different heating schedules to different areas of your home. An essential component of your heating system, the TPF-Eco Radio Frequency Thermostat must be purchased alongside your panels for them to operate as intended. Without the thermostat, the panels will not heat.
To adjust your heating using WiFi, you can purchase your panels with the Eco Interface Internet Heating Controller. The Eco Interface plugs directly into your home router, allowing you to make alterations to your heating via WiFi using a smartphone or tablet. The Eco Interface must be used in conjunction with the TPF-Eco and both devices need to be purchased for WiFi control. Further information can be found in the user guide under the installation tab.
