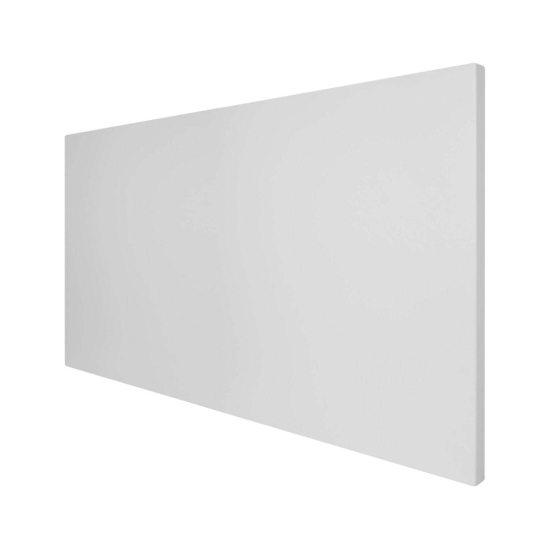

Ecostrad Opus IR Infrared Ceiling Panel with Remote - 700w (1205 x 755mm)

SKU
12502004
The 700w Ecostrad Opus IR Infrared Ceiling Panel is great for warming larger rooms with its 14m² heated area. Once installed on the ceiling, it directs its heat straight down toward the spaces you occupy throughout the day for efficient heating around the clock, and also ensures that there’s no accidental contact with hot surfaces.
Call Us
Our Price £349.00 inc. VAT
  • Product Details
    • Comfortable Far Infrared Heat
    • Elegant Frameless Design
    • Programmable Remote Included
    • Adaptive Start & Open Window Detection
    • Digital Thermostat Accurate to 0.5 °C
    • Recyclable Aluminium Housing
    • Slimline 25mm Deep Body
    • Patented Fire-Resistant Coating on Element
    • Insulated for Increased Efficiency
    • In-built Overheat Protection
    • Suitable for Domestic & Commercial Properties
    • Ceiling Mounting Kits Sold Separately
    • 5 Year Warranty on Heater Body
    • 1205 x 755 x 25mms (WxHxD)
  • Product Specifications
    More Information
    Brand Ecostrad
    Product Weight (kg) 12.8
    Depth (mm) 25
    Height (mm) 755
    Width (mm) 1205
    Wattage (w) 700
    Cable Length (m) 1.9
    IP Rating IP54
    Suitable for Bathrooms Zone 2 and 3
    IEC Class Protection Class I
    Room Size - Modern Insulation (m²) 14
    Room Size - Poor Insulation (m²) 7
  • Manuals & Installation

    View or download the Ecostrad Opus infrared panel manual here.

    View or download the IR remote control user manual here.

    This infrared panel is designed for ceiling mounted fitting; however, it can also be used as a wall mounted solution if desired. Please note that due to its lower wattage, its ‘heats up to’ area will be reduced when used as a wall heater.

    For a ceiling mounted fitting, this panel will need to be purchased with either the direct mounting kit or suspension kit, both of which are sold separately.

    Ecostrad Accent IR panels are suitable for use in bathrooms provided they are installed in zones 2 or 3 as per the manufacturer’s guidelines. If they are to be installed in a bathroom, they must always be hardwired into a fused spur by a professional electrician. Always defer to the manufacturer’s guidelines regarding the installation and suitability of their products for use in bathrooms.

    If you are planning to install multiple heaters, please consult an electrician beforehand to avoid overloading the ring main of your property. They will be able to provide further advice on your project and hardwire your heaters to the mains.

  • Warranty
    The Ecostrad Opus IR Infrared Ceiling Panel has a 5 Year Warranty on the heater body and a separate 1 Year Warranty on the electronic receiver.
  • Delivery Info

    Order before 12 pm
    for FREE Next Day UK Delivery

    This item is available with free next working day delivery. You can choose your delivery date from our calendar at the checkout. Next working day delivery dates are available when you order before 12:30pm (excluding weekends).

    Orders of multiple items may be shipped on a pallet. If you are ordering multiple different items, we will always endeavour to dispatch your goods together. However, separate dispatches may be necessary if the items you have ordered are being shipped from different locations. Check our delivery page or speak to our customer service team for more information.

    Please be aware that delivery times and charges may be increased if you want the items delivered to addresses in the Scottish Highlands & Islands, or outside the UK mainland. This will be calculated when you enter your postcode at the checkout.

  • What You Will Need

If you need a heat source that’s kept out of reach and out of sight, take a look at the Ecostrad Opus IR Infrared Ceiling Panel. This 700w infrared panel is able to heat rooms up to 14m² and is designed to direct all of its heat down toward the ground so that you’re always feeling the maximum benefit of its gentle warmth.

Opus infrared panels warm spaces using radiant heat, which is absorbed by the brickwork of your property to bring rooms up to comfort temperature. It doesn’t rely on the surrounding air to transfer warmth so no heat is lost through draughts. This means your rooms stay warmer for longer, using less energy in the process. On the inside of the panel is a carbon crystal film element that efficiently emits warmth into the room, and to prevent heat loss, the Opus also contains a layer of polyurethane insulation at the rear. The elements are covered in a special fire-resistant, patented coating which protects the appliance and also increases heat conduction.

The remote control supplied with each Opus IR panel acts as both the room thermostat and the programmer, allowing you to set a custom weekly schedule using its digital interface. You can set an interval Monday to Friday to create start and finish times for your heating during the working week, and set intervals for Saturday and Sunday separately. It also provides access to a comfort override option, as well as open window detection and adaptive start functions. Each remote can be used with any number of Opus IR panels so you can have multiple heaters follow the same routine. If you would prefer to use the heater with an external controller, you can simply use the bypass switch on the rear of the panel which gives you the option of changing your control preference further down the line.

This panel can be installed in two different ways. It can be purchased with a direct mounting kit for a fitting that hugs the ceiling or purchased with a suspension kit so that it can hang down at the height of your choosing.

Opus IR Space-saving
& elegant
Discreet Installation
Ecostrad Opus IR infrared ceiling panels keep your heating system well out of reach and also free up your walls and floor for other furnishings.
Remote Control Included
Every panel in the Opus IR range has its own remote control with an easy-read digital display. Point and press your way to perfectly heated rooms.
Digital Weekly Programming
Create a heating schedule that matches your routine throughout the week so your spaces are heated to the right temperature whenever you come to use them.
Premium Designer Look
Its frameless design and chic powder-coated finish give the Opus an elegant minimalist aesthetic that will complement a whole host of interiors.
Gentle Comfort Heating
These infrared heating panels emit the same type of heat as our own bodies, creating a lasting and natural sensation of warmth.
5 Year Guarantee on Body
Opus IR infrared panels come with a 5 Year Warranty on the heater body to reflect their superior build quality and design.
Discreet Heaters with A Designer Look
Ecostrad Opus IR infrared ceiling panels provide an unobtrusive overhead heat source that maximises your available room space. Its sophisticated frameless body and neutral white finish let it blend into the background unnoticed so you can enjoy comfortable heating without having to sacrifice the look of your interior design.
Opus IR Ceiling Panel
Lasting heat using less power

Infrared ceiling panels use a lower wattage to keep spaces warm compared to wall mounted products because their fitting location allows them to retain heat for longer. As heat naturally rises to the top of the room, Opus IR infrared ceiling panels can re-absorb some of this warmth, staying hotter whilst also using less power. This means less energy usage, lower running costs and even more savings in your pocket.

Ceiling mounted fitting in 3 ways

Whatever type of interior you’re looking to heat, these infrared panels offer a fitting to match. Choose from three different installation types to find the option that best suits your project:

Direct mounting Purchase the Opus IR panel with its direct mounting kit for a fitting that hugs the ceiling. Great for rooms with a standard ceiling height. Ceiling suspension Choose the suspension kit for high-ceilinged rooms, bringing the panels down toward the space you need to heat. This kit comes with cables that can be adjusted to the length required so you can find the ideal installation height. Installed in ceiling grids The 270w Opus IR infrared panel is suitable for use in office ceiling grids and simply slots into place with no installation kits needed.
iQ Plus display
Easy weekly programming

Each Opus IR infrared heating panel comes with a digital remote so you can program your heating to your heart’s content. Using its easy-read screen, you can set a heating interval for Monday to Friday to reflect your work routine, and program intervals for Saturday and Sunday individually. When your heaters aren’t scheduled to warm your rooms, they simply switch off to save energy, so you’ll always know exactly when they’ll be drawing power. At times when you need extra heat, there’s no need to reprogram your panels because the IR’s comfort override feature gives you a boost of warmth without affecting your settings. It’s convenient, easy to control heating that you can adjust from the comfort of your chair.

Zoned heating your way

The remote control also contains the room thermostat which monitors temperatures with a ±0.5 °C level of accuracy. Each remote can control an unlimited number of Opus IR infrared wall panels so if you have a number of heaters in one space, they can all follow the same routine. If you want to create separate heating zones throughout your property, you can do that too – the Opus IR’s remote-control system gives you infinite scope to configure your heaters how you like.

Compatible with external controllers

Need to use your Opus IR panel with an existing controller? No problem – each panel has a bypass switch on the rear to suspend connection with the remote. You can then wire it into the external controller of your choice so you can change or upgrade your heating as time goes by.

Lot 20 Compliant
Opus IR infrared ceiling panels come with digital weekly programming, open window detection and adaptive start for Ecodesign compliant heating.
Low Maintenance
The simple design of the Opus IR infrared panel means that it has a long product lifespan and requires very little maintenance.
Recyclable Aluminium
The aluminium body of these infrared panels can be infinity reused when disposed of responsibly at a WEEE recycling point.
